10034000 | LAPP
Surface mount housing, size HB10, aluminum alloy, PG16, angled, cross bow locking, IP65, 10034000
Not suitable for new designs - Last time buy manufacturer: 12.31.2025
Unit Price (€ / pc.)
20.2419 € *
Standard delivery time from the manufacturer is: On Request

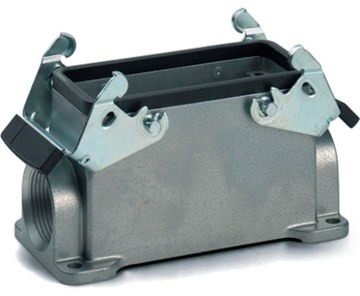

Bulkhead housing, 10034000, LAPP
The 10034000 universal housing is suitable for use in the plastics industry and consists of 2 double levers and 1 cable entry.
Features
- Supplementary automation components
- Mechanical and plant engineering
- Mechanical resistance
- Robust
- Waterproof
Applications
- Light & sound technology
- Plastics industry
Technical specifications
| Version | bulkhead housing | |
| Shell size | HB10 | |
| Shell Material | aluminum alloy | |
| Cable Outlet | PG16, angled | |
| Type of locking | cross bow locking | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
