10003000 | LAPP

Surface mount housing, size HB6, aluminum alloy, longitudinal bow locking, IP65, 10003000

Order No.: 30P583
EAN: 4044773056747
MPN:
10003000
EPIC H-B 6 AG ANBAUGEHAEUSE
Series: EPIC H-B 6

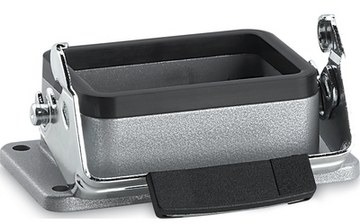

10003000 LAPP Housings for HDC Connectors Image 1

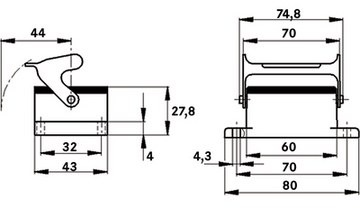

10003000 LAPP Housings for HDC Connectors Image 2
Image may differ
Unit Price (€ / pc.)
6.1047 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
61.05 € *
*incl. VAT plus shipping costs
Subject to prior sale
10 pcs.
6.1047 €

Bulkhead housing, 10003000, LAPP

The 10003000 metal housing is ideal for use with inserts with electrical properties, for example in the plastics industry.

Features

  • Supplementary automation components
  • Mechanical and plant engineering
  • Mechanical resistance
  • Robust
  • Waterproof

Applications

  • Control engineering
  • Plastics industry
Technical specifications
Filter Property Value
Shell Material aluminum alloy
Degree of protection (IP) IP65
Version bulkhead housing
Shell size HB6
Type of locking longitudinal bow locking
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
