27500924 | LAPP

Fibre optic cable, singlemode 9/125 µm, fibers: 24, OS2, LSZH, green, 27500924

Order No.: 33P3054
EAN: 4056155126641
MPN:
27500924
HITRONIC HUW1500 24 E 9/125 OS2
Series: HITRONIC HUW
27500924 LAPP Fiber Optic Cables
Image may differ
Unit Price (€ / mtr.)
2.4633 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
246.33 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 mtr.
2.4633 €

Fiber optic cable, 27500924, LAPP

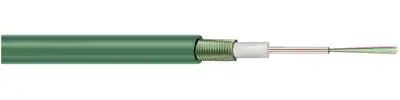

The 27500924 is a universal glass fibre optic cable with corrugated steel tape armour, central loose tube, non-metallic strength elements, longitudinally and laterally watertight, excellent rodent protection, flame-retardant and halogen-free cable sheath.

Features

  • Heat-resistant
  • Mechanical resistance
  • Low weight
  • Optimum strain relief
  • UV-resistant
  • Waterproof

Applications

  • For indoor and outdoor use
  • Campus backbone
  • Industrial environments
Technical specifications
Filter Property Value
Material LSZH
Chamfer type singlemode 9/125 µm
Temperature range (unmoved) -30 °C to 70 °C
Number of fibres 24
Outer diameter 9.6 mm
Colour green
Category OS2
Halogen free Yes
Logistics
Property Value
Customs tariff number 85447000
Country of origin ES
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
