5555934027 | LAPP

Charging cable, 5 m, type 2 to type 2, 3 phase, mode 3, 32 A, 440 V, 5555934027

Order No.: 33P310
EAN: 4064727469713
MPN:
5555934027

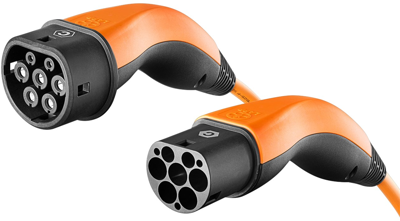

5555934027 LAPP eMobility Charging Cables Image 1
5555934027 LAPP eMobility Charging Cables Image 2
Image may differ
Unit Price (€ / pc.)
192.5539 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
192.55 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
192.5539 €

Standard charging cable, 5555934027, LAPP

The 5555934027 with a length of 5 m enables easy and fast charging at public and private charging stations and wallboxes. The high protection rating of IP55, together with the additional longitudinal waterproofing, ensures excellent moisture protection. The charging cable, which is designed in accordance to the applicable IEC and EN standards, is both robust and durable, but also easy to handle thanks to its low weight.

Features

  • Halogen-free
  • Flame-retardant
  • Oil-resistant
Technical specifications
Filter Property Value
Connection (1) type 2
Connection (2) type 2
Number of phases 3
Loading mode mode 3
Cable length 5 m
Colour orange
Cable cross-section 5 x 6.0 mm² + 1 x 0.5 mm²
Rated current 32 A
Rated voltage 440 V
Logistics
Property Value
Original Packaging Carton with 1 piece
Country of origin DE
Customs tariff number 85444290
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
