73220321 | LAPP

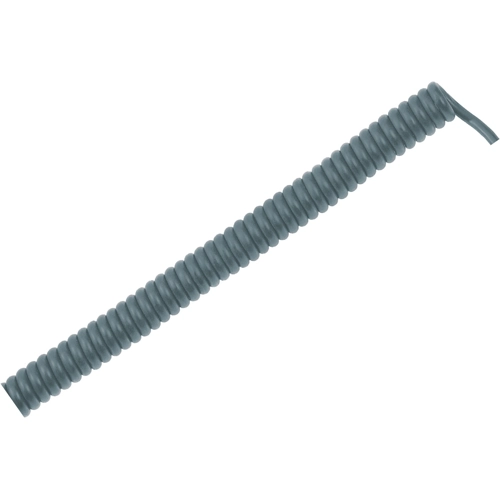

PUR spiral data cable, 0.2/0.8 m, 6-wire, 0.14 mm², gray, 73220321
Spiral cable, 73220321, LAPP
The 73220321 is used wherever cables with smallest dimensions are required, e.g. in measuring and controlling engineering. High flexibility affords extended lengths of up to 4 times the unextended spiral length. This product is a flexible data cable for weak-current applications. The cut resistant polyurethane outer sheath is largely resistant to the action of acids, caustic solutions and certain oils, and to abrasion.
Features
- Mechanical resistance
- Oil-resistant
- Transmission of control and measuring signals
- Abrasion and cut-resistant
- Very high flexibility
- Halogen-free and flame-retardant
Applications
- In measurement and control engineering
- Handling and measurement equipment
- Conveyor and transport systems
Core insulation material | polyolefine | |
Number of cores | 6 | |
Version | spiral data cable | |
Outer diameter | 4.8 mm | |
Colour | gray | |
Halogen free | Yes | |
Cable material | copper, bright | |
Cable cross-section | 0.14 mm² | |
Material | PUR | |
Shielding | unshielded | |
Drag chain suitable | No | |
Temperature range (active) | -5 °C to 50 °C |
Country of origin | CZ |
Customs tariff number | 85444995 |
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
