73220309 | LAPP
PUR spiral data cable, 3-wire, 0.14 mm², gray, 73220309
Order No.: 33P6245
EAN: 4044777545742
MPN:
73220309
UNITRONIC SPIRAL LiF2Y11Y 3x0,14/500
Series: UNITRONIC SPIRAL LiF2Y11Y
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
37.5802 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
37.58 € *
Price list
Quantity
Price per unit*
1 pcs.
37.5802 €
10 pcs.
34.6885 €
*incl. VAT plus shipping costs
Subject to prior sale

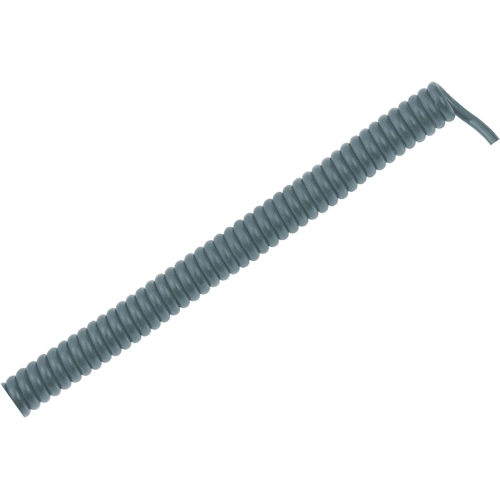

Spiral cable, 73220309, LAPP
The 73220309 is used wherever cables with smallest dimensions are required, e.g. in measuring and controlling engineering. High flexibility affords extended lengths of up to 4 times the unextended spiral length. This product is a flexible data cable for weak-current applications. The cut resistant polyurethane outer sheath is largely resistant to the action of acids, caustic solutions and certain oils, and to abrasion.
Features
- Mechanical resistance
- Oil-resistant
- Transmission of control and measuring signals
- Abrasion and cut-resistant
- Very high flexibility
- Halogen-free and flame-retardant
Applications
- In measurement and control engineering
- Handling and measurement equipment
- Conveyor and transport systems
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | spiral data cable | |
| Version | 0.5/2 m | |
| Number of cores | 3 | |
| Cable cross-section | 0.14 mm² | |
| Outer diameter | 3.9 mm | |
| Colour | gray | |
| Material | PUR | |
| Cable material | copper, bright | |
| Core insulation material | polyolefine | |
| Shielding | unshielded | |
| Halogen free | Yes | |
| Drag chain suitable | No | |
| Temperature range (active) | -5 °C to 50 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| Electrical equipment take-back |  |
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
