302410 | LAPP

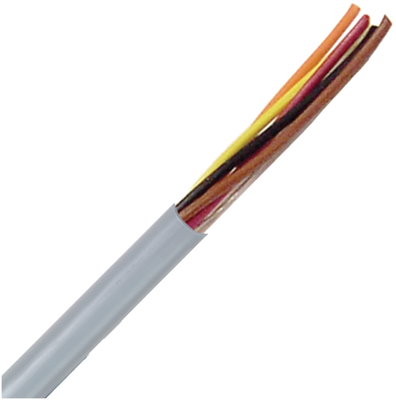

PVC data cable, 10-wire, 0.24 mm², AWG 24, gray, 302410
Unit Price (€ / mtr.)
18.8734 € *
Standard delivery time from the manufacturer is: 6 Weeks
Data cable, 302410, LAPP
The 302410 is a rugged, multi-conductor, low voltage control and signal cable for internal and external wiring of OEM equipment for industrial applications. The jacket is very oil resistant and is pressure extruded for improved flexibility and easier installation.
Features
- Wind Energy
- Flame-retardant
- Cold-resistant
- Oil-resistant
- Temperature-resistant
- Torsion-resistant
- UV-resistant
Applications
- Process control
- Electrical equipment
- Industrial machinery
- Low-voltage control interconnect
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | gray | |
| Outer diameter | 6.4 mm | |
| Drag chain suitable | No | |
| AWG cross-section | AWG 24 | |
| Number of cores | 10 | |
| Core insulation material | PVC | |
| Temperature range (unmoved) | -40 °C to 105 °C | |
| Halogen free | No | |
| Material | PVC | |
| Cable material | copper, tin-plated | |
| Version | data cable | |
| Shielding | unshielded | |
| Cable cross-section | 0.24 mm² | |
| Temperature range (active) | -25 °C to 105 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85444993 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
