302025 | LAPP

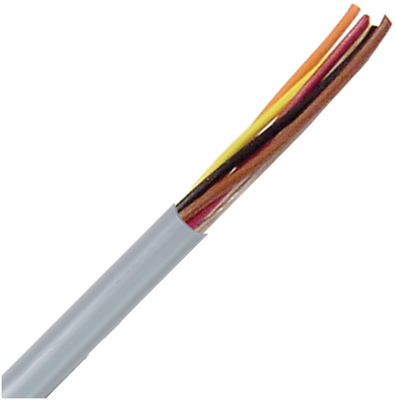

PVC data cable, 25-wire, 0.62 mm², AWG 20, gray, 302025
Unit Price (€ / mtr.)
35.4144 € *
Standard delivery time from the manufacturer is: 6 Weeks
Data cable, 302025, LAPP
The 302025 is a rugged, multi-conductor, low voltage control and signal cable for internal and external wiring of OEM equipment for industrial applications. The jacket is very oil resistant and is pressure extruded for improved flexibility and easier installation.
Features
- Wind Energy
- Flame-retardant
- Cold-resistant
- Oil-resistant
- Temperature-resistant
- Torsion-resistant
- UV-resistant
Applications
- Process control
- Electrical equipment
- Industrial machinery
- Low-voltage control interconnect
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable cross-section | 0.62 mm² | |
| Core insulation material | PVC | |
| Drag chain suitable | No | |
| Outer diameter | 14.1 mm | |
| Material | PVC | |
| Colour | gray | |
| Temperature range (unmoved) | -40 °C to 105 °C | |
| Version | data cable | |
| Number of cores | 25 | |
| Temperature range (active) | -25 °C to 105 °C | |
| Shielding | unshielded | |
| Halogen free | No | |
| AWG cross-section | AWG 20 | |
| Cable material | copper, tin-plated |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85444993 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
