302015 | LAPP

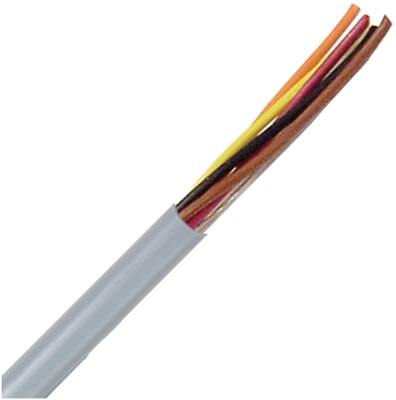

PVC data cable, 15-wire, 0.62 mm², AWG 20, gray, 302015

Order No.: 33P6069
EAN: 4044774755267
MPN:
302015
UNITRONIC 300 20/15C
Series: UNITRONIC 300
302015 LAPP Data Cables
Image may differ
Unit Price (€ / mtr.)
29.5477 € *
Available: 0 mtr.
Leadtime: On Request **
Total Price:
4,491.25 € *
*incl. VAT plus shipping costs
**Subject to prior sale
152 mtr.
29.5477 €

Data cable, 302015, LAPP

The 302015 is a rugged, multi-conductor, low voltage control and signal cable for internal and external wiring of OEM equipment for industrial applications. The jacket is very oil resistant and is pressure extruded for improved flexibility and easier installation.

Features

  • Wind Energy
  • Flame-retardant
  • Cold-resistant
  • Oil-resistant
  • Temperature-resistant
  • Torsion-resistant
  • UV-resistant

Applications

  • Process control
  • Electrical equipment
  • Industrial machinery
  • Low-voltage control interconnect
Technical specifications
Core insulation material PVC
Colour gray
Number of cores 15
Outer diameter 11.5 mm
Drag chain suitable No
AWG cross-section AWG 20
Halogen free No
Cable cross-section 0.62 mm²
Version data cable
Material PVC
Cable material copper, tin-plated
Shielding unshielded
Temperature range (unmoved) -40 °C to 105 °C
Temperature range (active) -25 °C to 105 °C
Logistics
Country of origin US
Customs tariff number 85444993
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
