302002STP | LAPP
PVC data cable, 4-wire, 0.62 mm², AWG 20, gray, 302002STP
Order No.: 33P6092
EAN: 4044776795124
MPN:
302002STP
UNITRONIC 300 STP 20/2PR
Series: UNITRONIC 300 STP
Unit Price (€ / mtr.)
16.7314 € *
Standard delivery time from the manufacturer is: On Request
Data cable, 302002STP, LAPP

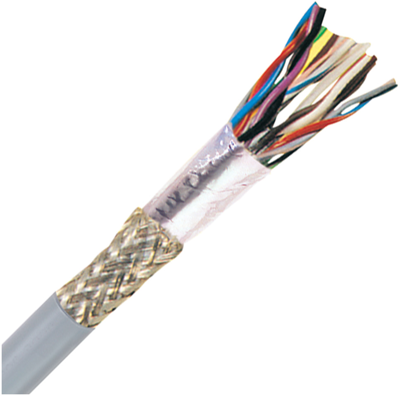

The 302002STP is a rugged, multi-pair, low voltage control and signal cable for internal and external wiring of OEM equipment for industrial applications. The jacket is very oil resistant and is pressure extruded for improved flexibility and easier installation. The shield consists of a foil tape and tinned copper drain wire for RFI & EMI protection.
Features
- Suitable for outdoor use
- Flame-retardant
- Oil-resistant
- Interference signals
- Temperature-resistant
- UV-resistant
Applications
- Process control
- Electrical equipment
- Industrial machinery
- Low-voltage control interconnect
Technical specifications
| Core insulation material | PVC | |
| Colour | gray | |
| Number of cores | 4 | |
| Outer diameter | 9.4 mm | |
| Drag chain suitable | No | |
| AWG cross-section | AWG 20 | |
| Halogen free | No | |
| Cable cross-section | 0.62 mm² | |
| Version | data cable | |
| Material | PVC | |
| Cable material | copper, tin-plated | |
| Shielding | shielded | |
| Temperature range (unmoved) | -40 °C to 105 °C | |
| Temperature range (active) | -25 °C to 105 °C |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85444993 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
