301801STP | LAPP
PVC data cable, 2-wire, 1.0 mm², AWG 18, gray, 301801STP
Order No.: 33P6089
EAN: 4044776795193
MPN:
301801STP
UNITRONIC 300 STP 18/1PR
Series: UNITRONIC 300 STP
Unit Price (€ / mtr.)
13.6255 € *
Standard delivery time from the manufacturer is: 6 Weeks

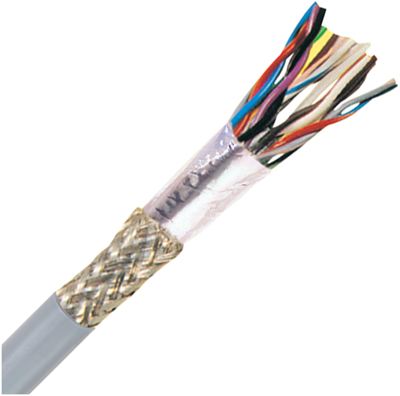

Data cable, 301801STP, LAPP
The 301801STP is a rugged, multi-pair, low voltage control and signal cable for internal and external wiring of OEM equipment for industrial applications. The jacket is very oil resistant and is pressure extruded for improved flexibility and easier installation. The shield consists of a foil tape and tinned copper drain wire for RFI & EMI protection.
Features
- Suitable for outdoor use
- Flame-retardant
- Oil-resistant
- Interference signals
- Temperature-resistant
- UV-resistant
Applications
- Process control
- Electrical equipment
- Industrial machinery
- Low-voltage control interconnect
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Drag chain suitable | No | |
| Material | PVC | |
| AWG cross-section | AWG 18 | |
| Cable material | copper, tin-plated | |
| Temperature range (active) | -25 °C to 105 °C | |
| Number of cores | 2 | |
| Core insulation material | PVC | |
| Shielding | shielded | |
| Halogen free | No | |
| Temperature range (unmoved) | -40 °C to 105 °C | |
| Colour | gray | |
| Outer diameter | 6.8 mm | |
| Version | data cable | |
| Cable cross-section | 1.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85444993 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
