2170977 | LAPP

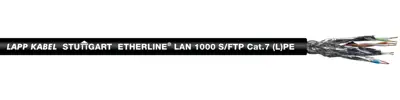

PE ethernet cable, Cat 7, 8-wire, AWG 23, black, 2170977
Order No.: 33P356
EAN: 4044777771967
MPN:
2170977
ETHERLINE LAN Cat.7 S/FTP 4x2AWG23 (L)PE
Series: ETHERLINE LAN 1000 Cat.7 OUTDOOR
Unit Price (€ / mtr.)
2.7251 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Ethernet cable, 2170977, LAPP
The ethernet cable is an installation cable for structured horizontal cabling. This cable is ideal for LAN data transmission in all Ethernet (IEEE 802.3) applications up to 10 GBase-T. The copper braid overall screen offers protection against electromagnetic interference as well as mechanical reinforcement. The cable has PE outer sheath and is suitable for outdoor usage but not for direct burial.
Features
- Transfer of digital and analogue data signals
- Backward compatible
- UV-resistant
- Suitable for outdoor use
Technical specifications
| Core insulation material | PE | |
| Colour | black | |
| Number of cores | 8 | |
| Outer diameter | 9.8 mm | |
| AWG cross-section | AWG 23 | |
| Halogen free | Yes | |
| Version | ethernet cable | |
| Category | Cat 7 | |
| Material | PE | |
| Cable material | copper, tin-plated | |
| Shielding | shielded | |
| Temperature range (unmoved) | -30 °C to 70 °C | |
| Temperature range (active) | -10 °C to 50 °C |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85444993 |
| Original Packaging | Ring with 100 meters |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
