2170950 | LAPP
PVC ethernet cable, Cat 5e, 8-wire, AWG 24, gray, 2170950
Order No.: 33P5638
EAN: 4044777771325
MPN:
2170950
ETHERLINE LAN Cat.5e U/UTP 4x2xAWG24
Series: ETHERLINE LAN 200 Cat.5e
Unit Price (€ / mtr.)
0.7378 € *
Standard delivery time from the manufacturer is: 6 Weeks

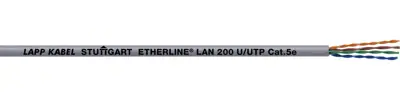

Ethernet cable, 2170950, LAPP
The 2170950 is an installation cable for structured horizontal cabling. This cable is ideal for LAN data transmission in all Ethernet (IEEE 802.3) applications up to 1000 Base-T.
Features
- Transfer of digital and analogue data signals
- Flame-retardant
- Halogen-free
- Interference signals
Applications
- For office wiring, administration and development buildings in the tertiary sector
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Drag chain suitable | No | |
| Material | PVC | |
| AWG cross-section | AWG 24 | |
| Category | Cat 5e | |
| Temperature range (active) | -0 °C to 50 °C | |
| Number of cores | 8 | |
| Core insulation material | PE | |
| Shielding | unshielded | |
| Halogen free | No | |
| Temperature range (unmoved) | -20 °C to 60 °C | |
| Colour | gray | |
| Outer diameter | 5.1 mm | |
| Version | ethernet cable |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | RO |
| Customs tariff number | 85444993 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
