2170924 | LAPP

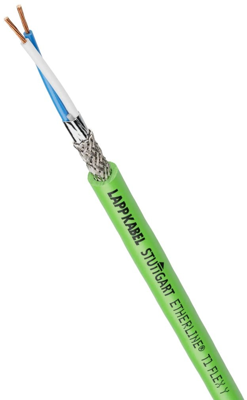

PVC ethernet cable, ethernet/PROFINET, 2-wire, AWG 22, green, 2170924
Order No.: 33P7591
EAN: 4044778436360
MPN:
2170924
ETHERLINE T1 PN FLEX Y 1x2x22/7AWG
Series: ETHERLINE T1 FLEX
Unit Price (€ / mtr.)
2.2729 € *
Standard delivery time from the manufacturer is: 6 Weeks
Single pair Ethernet cable, 2170924, LAPP
The 2170924 is a flexible industrial ethernet cable for generic cable system. This product is also suitable for continuous flexing.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Halogen free | No | |
| Colour | green | |
| Outer diameter | 5.5 mm | |
| Version | ethernet cable | |
| Material | PVC | |
| Temperature range (active) | -20 °C to 60 °C | |
| AWG cross-section | AWG 22 | |
| Number of cores | 2 | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Shielding | shielded | |
| Core insulation material | PE | |
| Drag chain suitable | No | |
| Cable material | copper, bright | |
| Bussystem | ethernet/PROFINET |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
