2170920 | LAPP
PUR ethernet cable, ethernet/ethernet-APL, 2-wire, AWG 19, green, 2170920
Order No.: 33P7590
EAN: 4064727496184
MPN:
2170920
ETHERLINE T1 FD P 1x2x26/19AWG
Series: ETHERLINE T1 FD
Unit Price (€ / mtr.)
2.6894 € *
Standard delivery time from the manufacturer is: 6 Weeks

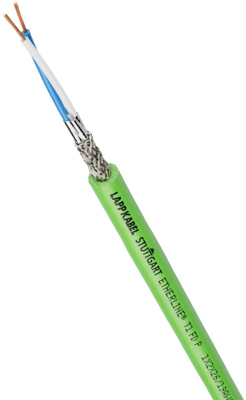

Single pair Ethernet cable, 2170920, LAPP
The 2170920 is a highly flexible industrial ethernet cable for generic cable system. This product is also suitable for continuous flexing, e.g. applications in cable chains and permanent moved machine parts.
Features
- Flame retardant
- Halogen free
- Oil-resistant
- UV-resistant
- Abrasion resistant
- Largely resistant to acids and alkalis
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 19 | |
| Colour | green | |
| Core insulation material | PE | |
| Temperature range (active) | -20 °C to 60 °C | |
| Drag chain suitable | No | |
| Halogen free | Yes | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Number of cores | 2 | |
| Outer diameter | 4.6 mm | |
| Material | PUR | |
| Version | ethernet cable | |
| Bussystem | ethernet/ethernet-APL | |
| Cable material | copper, bright | |
| Shielding | shielded |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
