2170496/100 | LAPP

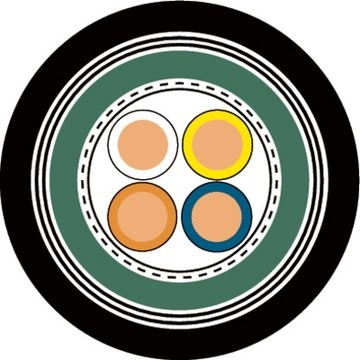

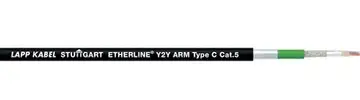

PVC ethernet cable, Cat 5, PROFINET, 4-wire, 0.5 mm², AWG 22, black, 2170496/100
Order No.: 30P1750
EAN: 4044774752396
MPN:
2170496/100
ETHERLINE Cat.5 ARM
Series: ETHERLINE Cat.5 ARM
Unit Price (€ / mtr.)
10.2578 € *
Standard delivery time from the manufacturer is: On Request
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Category | Cat 5 | |
| AWG cross-section | AWG 22 | |
| Core insulation material | PE | |
| Temperature range (active) | -20 °C to 60 °C | |
| Colour | black | |
| Halogen free | No | |
| Number of cores | 4 | |
| Shielding | shielded | |
| Outer diameter | 9.3 mm | |
| Temperature range (unmoved) | -40 °C to 70 °C | |
| Material | PVC | |
| Bussystem | PROFINET | |
| Version | ethernet cable | |
| Cable material | copper, bright | |
| Cable cross-section | 0.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444993 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
