2170488/100 | LAPP

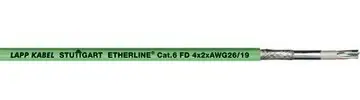

PUR ethernet cable, Cat 6, ethernet/IP, 6-wire, 0.13 mm², AWG 26, green, 2170488/100
Order No.: 30P1871
EAN: 4044774869537
MPN:
2170488/100
ETHERLINE FD P CAT.6 4X2XAWG26
Series: ETHERLINE FD Cat.6A
Unit Price (€ / mtr.)
11.6739 € *
Standard delivery time from the manufacturer is: On Request
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | PUR | |
| Cable material | copper, bright | |
| Version | ethernet cable | |
| Number of cores | 6 | |
| Shielding | shielded | |
| Core insulation material | PE | |
| Cable cross-section | 0.13 mm² | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Temperature range (active) | -30 °C to 70 °C | |
| Outer diameter | 7.8 mm | |
| Bussystem | ethernet/IP | |
| Colour | green | |
| Category | Cat 6 | |
| Halogen free | Yes | |
| AWG cross-section | AWG 26 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444993 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
