2170385 | LAPP
PUR bus line, CAN, 4-wire, 0.25 mm², black, 2170385
Order No.: 33P2776
EAN: 4044777768226
MPN:
2170385
UNITRONIC BUS HEAT 6722 1x4x0,25
Series: UNITRONIC BUS HEAT 6722
Unit Price (€ / mtr.)
8.6394 € *
Standard delivery time from the manufacturer is: 6 Weeks

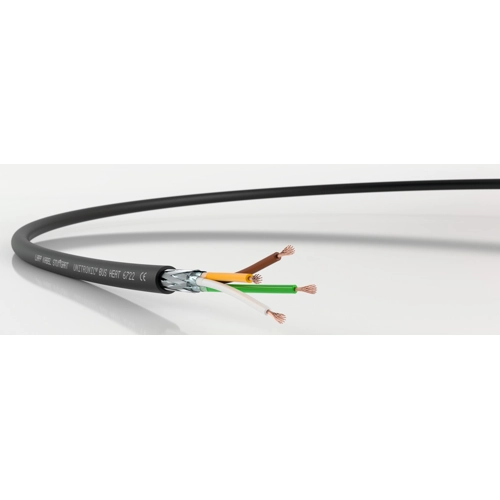

Bus cable, 2170385, LAPP
The 2170385 is a bus cable for use in utility vehicles with extended requirements, like higher temperature range, restistance against UV, operating fluids. This product is suitable for fixed installation, limited moved applications in dry and damp area and has a moderate resistance to acids and alkalis and certain oils at room temperature.
Features
- Suitable for outdoor use
- e-Mobility
- Good chemical resistance
- Space requirement
Technical specifications
| Core insulation material | PP | |
| Colour | black | |
| Number of cores | 4 | |
| Outer diameter | 6.4 mm | |
| Drag chain suitable | No | |
| Halogen free | Yes | |
| Bussystem | CAN | |
| Cable cross-section | 0.25 mm² | |
| Version | bus line | |
| Material | PUR | |
| Cable material | copper, tin-plated | |
| Shielding | shielded | |
| Temperature range (unmoved) | -40 °C to 105 °C | |
| Temperature range (active) | -30 °C to 105 °C |
Download
Logistics
| Country of origin | AT |
| Customs tariff number | 85444995 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
