2170205 | LAPP
PVC system bus cable, modbus, 6-wire, 0.22 mm², purple, 2170205
Order No.: 33P277
EAN: 4044774869407
MPN:
2170205
UNITRONIC BUS LD 3x2x0,22
Series: UNITRONIC BUS LD
Unit Price (€ / mtr.)
3.2130 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
3.21 € *
Price list
Quantity
Price per unit*
1 mtr.
3.2130 €
10 mtr.
2.7846 €
50 mtr.
2.5704 €
100 mtr.
2.3681 €
500 mtr.
2.2253 €
*incl. VAT plus shipping costs
Subject to prior sale

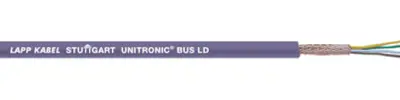

Bus cable, 2170205, LAPP
Flexible buscable with PVC outer sheath, for use in different bussystems. For bus systems like e.g. Modbus, SUCOnet, Modulink, VariNet.
Features
- Flame retardant
- Overall screening of braided tinned-copper strands
- Suitable for multiple bus systems based on RS485 / RS422
Applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable cross-section | 0.22 mm² | |
| Core insulation material | PE | |
| Bussystem | modbus | |
| Outer diameter | 7.2 mm | |
| Material | PVC | |
| Colour | purple | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Version | system bus cable | |
| Number of cores | 6 | |
| Temperature range (active) | -5 °C to 70 °C | |
| Shielding | shielded | |
| Halogen free | No | |
| Cable material | copper, bright |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | AT |
| Original Packaging | Ring with 100 meters |
| Customs tariff number | 85444993 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
