2170204 | LAPP
PVC system bus cable, modbus, 4-wire, 0.22 mm², purple, 2170204
Order No.: 33P276
EAN: 4044774869377
MPN:
2170204
UNITRONIC BUS LD 2x2x0,22
Series: UNITRONIC BUS LD
Unit Price (€ / mtr.)
2.7132 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
2.71 € *
Price list
Quantity
Price per unit*
1 mtr.
2.7132 €
10 mtr.
2.3681 €
50 mtr.
2.2015 €
100 mtr.
2.0230 €
500 mtr.
1.9278 €
*incl. VAT plus shipping costs
Subject to prior sale

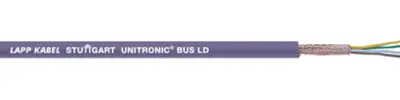

Bus cable, 2170204, LAPP
Flexible buscable with PVC outer sheath, for use in different bussystems. For bus systems like e.g. Modbus, SUCOnet, Modulink, VariNet.
Features
- Flame retardant
- Overall screening of braided tinned-copper strands
- Suitable for multiple bus systems based on RS485 / RS422
Applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Outer diameter | 7.1 mm | |
| Version | system bus cable | |
| Core insulation material | PE | |
| Halogen free | No | |
| Cable cross-section | 0.22 mm² | |
| Cable material | copper, bright | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Colour | purple | |
| Material | PVC | |
| Number of cores | 4 | |
| Bussystem | modbus | |
| Temperature range (active) | -5 °C to 70 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Ring with 100 meters |
| Customs tariff number | 85444993 |
| Country of origin | AT |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
