2170203 | LAPP
PVC system bus cable, modbus, 2-wire, 0.22 mm², purple, 2170203
Order No.: 33P275
EAN: 4044774869346
MPN:
2170203
UNITRONIC BUS LD 1x2x0,22
Series: UNITRONIC BUS LD
Unit Price (€ / mtr.)
1.7136 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
1.71 € *
Price list
Quantity
Price per unit*
1 mtr.
1.7136 €
10 mtr.
1.5113 €
50 mtr.
1.3923 €
100 mtr.
1.2852 €
500 mtr.
1.2138 €
*incl. VAT plus shipping costs
Subject to prior sale

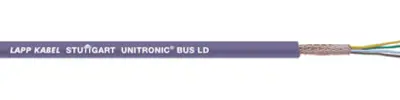

Bus cable, 2170203, LAPP
Flexible buscable with PVC outer sheath, for use in different bussystems. For bus systems like e.g. Modbus, SUCOnet, Modulink, VariNet.
Features
- Flame retardant
- Overall screening of braided tinned-copper strands
- Suitable for multiple bus systems based on RS485 / RS422
Applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | purple | |
| Number of cores | 2 | |
| Outer diameter | 5.7 mm | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Shielding | shielded | |
| Temperature range (active) | -5 °C to 70 °C | |
| Cable material | copper, bright | |
| Halogen free | No | |
| Bussystem | modbus | |
| Core insulation material | PE | |
| Cable cross-section | 0.22 mm² | |
| Material | PVC | |
| Version | system bus cable |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Ring with 100 meters |
| Customs tariff number | 85444993 |
| Country of origin | AT |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
