2170144/100 | LAPP

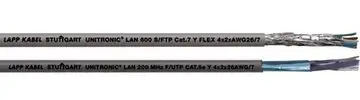

LSZH ethernet cable, Cat 7, 4-wire, 0.13 mm², AWG 26, gray, 2170144/100
Order No.: 32P4102
EAN: 4044774749136
MPN:
2170144/100
UNITRONIC LAN 600 S/FTP CAT7 Y
Series: UNITRONIC LAN FLEX
Unit Price (€ / mtr.)
2.8084 € *
Standard delivery time from the manufacturer is: 1 Week
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 26 | |
| Colour | gray | |
| Number of cores | 4 | |
| Outer diameter | 6.5 mm | |
| Temperature range (unmoved) | -20 °C to 60 °C | |
| Shielding | shielded | |
| Temperature range (active) | 0 °C to 50 °C | |
| Cable material | copper | |
| Halogen free | No | |
| Category | Cat 7 | |
| Core insulation material | PVC | |
| Cable cross-section | 0.13 mm² | |
| Material | LSZH | |
| Version | ethernet cable |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444993 |
| Country of origin | QU |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
