2170127 | LAPP

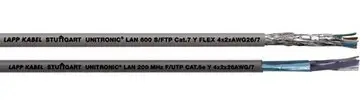

LSZH ethernet cable, Cat 5e, 4-wire, 0.13 mm², AWG 26, gray, 2170127
Order No.: 32P4087
EAN: 4044774748818
MPN:
2170127
UNITRONIC LAN 200 F/UTP Cat.5e
Series: UNITRONIC LAN FLEX
Unit Price (€ / mtr.)
1.9635 € *
Available: 161 mtr.
Total Price:
1.96 € *
Price list
Quantity
Price per unit*
1 mtr.
1.9635 €
25 mtr.
1.6422 €
100 mtr.
1.5232 €
200 mtr.
1.4518 €
800 mtr.
1.3328 €
*incl. VAT plus shipping costs
Subject to prior sale
Data cable, 2170127, LAPP
Data cable for patchcable applications. The LAN cable has good flexibility and can be installed easily in restricted spaces. The cable is suitable for connection in control cabinets.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core insulation material | PVC | |
| Number of cores | 4 | |
| Version | ethernet cable | |
| AWG cross-section | AWG 26 | |
| Temperature range (active) | 0 °C to 50 °C | |
| Halogen free | Yes | |
| Category | Cat 5e | |
| Cable cross-section | 0.13 mm² | |
| Material | LSZH | |
| Temperature range (unmoved) | -20 °C to 60 °C | |
| Cable material | copper | |
| Colour | gray | |
| Outer diameter | 5.6 mm | |
| Shielding | shielded |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Ring with 100 meters |
| Country of origin | DE |
| Customs tariff number | 85444993 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
