11139535 | LAPP

PUR data cable, 28-wire, 0.75 mm², gray, 11139535

Order No.: 33P255
EAN: 4064727479897
MPN:
11139535
UNITRONIC FD CP (TP) plus A 14X2X0,75
Series: UNITRONIC FD CP (TP) plus A
LAPP

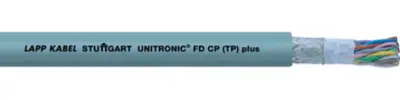

11139535 LAPP Data Cables Image 1

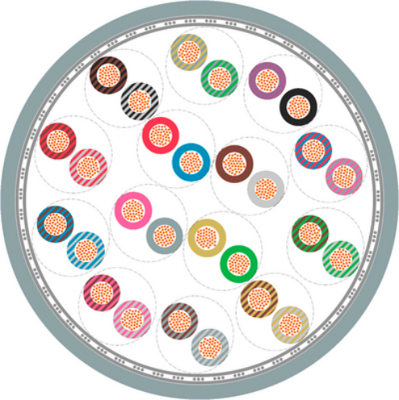

11139535 LAPP Data Cables Image 2
Image may differ
Print
Key Specification:
Version data cable
Number of cores 28
Cable cross-section 0.75 mm²
Outer diameter 17 mm
Show variants: 44
Download Datasheet Technical specifications
Unit Price (€ / mtr.)
34.1768 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
1,708.84 € *
Price list
Quantity
Price per unit*
50 mtr.
34.1768 €
100 mtr.
32.0586 €
*incl. VAT plus shipping costs
Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations

Data cable, 11139535, LAPP

This cable is a shielded, highly flexible, low-capacitive PUR data cable with twisted pairs for sophisticated chain track.

Features

  • Halogen-free
  • Good chemical resistance
  • Cold-resistant
  • Mechanical resistance
  • Oil-resistant
  • Low-adhesive surface

Applications

  • Suitable for use in measuring, control and regulating circuits
  • Linear robots, automated handling equipment
  • Sophisticated design for high-performance chain/ track use
  • Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)

Technical specifications
Version data cable
Number of cores 28
Cable cross-section 0.75 mm²
Outer diameter 17 mm
Colour gray
Material PUR
Cable material copper, bright
Core insulation material polyolefine
Shielding shielded
Halogen free Yes
Drag chain suitable Yes
Temperature range (unmoved) -40 °C to 80 °C
Temperature range (active) -40 °C to 80 °C
Articles of same specification 0
Logistics
Original Packaging Ring with 100 meters
Customs tariff number 85444995
Country of origin IT
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
