11139527 | LAPP

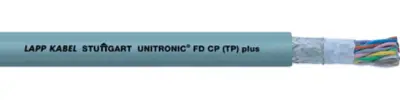

Name: PUR data cable, 20-wire, 0.5 mm², AWG 20, gray, 11139527
Brand: LAPP
SKU: 33P247
Availability: InStock

PUR data cable, 20-wire, 0.5 mm², AWG 20, gray, 11139527

Order No.: 33P247

EAN: 4064728766019

MPN:

11139527

UNITRONIC FD CP (TP) plus A 10X2X0,5

Series: UNITRONIC FD CP (TP) plus A

Unit Price (€ / mtr.)

19.5874 € *

Standard delivery time from the manufacturer is: On Request

Total Price:

979.37 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Data cable, 11139527, LAPP

This cable is a shielded, highly flexible, low-capacitive PUR data cable with twisted pairs for sophisticated chain track.

Features

Halogen-free
Good chemical resistance
Cold-resistant
Mechanical resistance
Oil-resistant
Low-adhesive surface

Applications

Suitable for use in measuring, control and regulating circuits
Linear robots, automated handling equipment
Sophisticated design for high-performance chain/ track use
Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)

Technical specifications

Filter	Property	Value
	Core insulation material	polyolefine
	AWG cross-section	AWG 20
	Shielding	shielded
	Cable material	copper, bright
	Colour	gray
	Drag chain suitable	Yes
	Cable cross-section	0.5 mm²
	Temperature range (active)	-40 °C to 80 °C
	Material	PUR
	Halogen free	Yes
	Outer diameter	15.2 mm

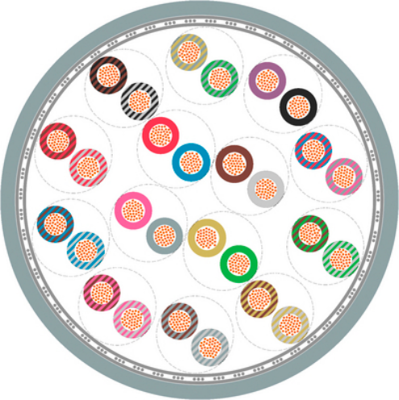

	Number of cores	20
	Temperature range (unmoved)	-40 °C to 80 °C
	Version	data cable
