11139526 | LAPP

PUR data cable, 16-wire, 0.5 mm², AWG 20, gray, 11139526

Order No.: 33P246
EAN: 4064727479552
MPN:
11139526
UNITRONIC FD CP (TP) plus A 8X2X0,5
Series: UNITRONIC FD CP (TP) plus A
LAPP

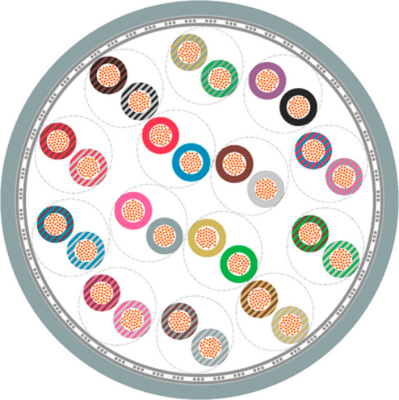

11139526 LAPP Data Cables Image 1

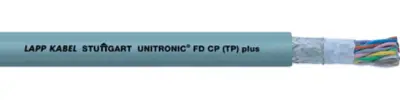

11139526 LAPP Data Cables Image 2
Image may differ
Print
Key Specification:
Version data cable
Number of cores 16
Cable cross-section 0.5 mm²
AWG cross-section AWG 20
Outer diameter 13.2 mm
Show 44 variants
Download Datasheet Technical specifications
Unit Price (€ / mtr.)
18.0880 € *
Available: 95 mtr.
Total Price:
18.09 € *
Price list
Quantity
Price per unit*
1 mtr.
18.0880 €
10 mtr.
17.0884 €
50 mtr.
16.0650 €
100 mtr.
15.0773 €
*incl. VAT plus shipping costs
Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations

Data cable, 11139526, LAPP

This cable is a shielded, highly flexible, low-capacitive PUR data cable with twisted pairs for sophisticated chain track.

Features

  • Halogen-free
  • Good chemical resistance
  • Cold-resistant
  • Mechanical resistance
  • Oil-resistant
  • Low-adhesive surface

Applications

  • Suitable for use in measuring, control and regulating circuits
  • Linear robots, automated handling equipment
  • Sophisticated design for high-performance chain/ track use
  • Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)

Technical specifications
Halogen free Yes
Colour gray
Cable cross-section 0.5 mm²
Outer diameter 13.2 mm
Version data cable
Material PUR
Temperature range (active) -40 °C to 80 °C
AWG cross-section AWG 20
Number of cores 16
Temperature range (unmoved) -40 °C to 80 °C
Shielding shielded
Core insulation material polyolefine
Drag chain suitable Yes
Cable material copper, bright
Articles of same specification 0
Logistics
Customs tariff number 85444993
Country of origin IT
Original Packaging Ring with 100 meters
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
