11139506 | LAPP

PUR data cable, 16-wire, 0.14 mm², AWG 26, gray, 11139506

Order No.: 33P226
EAN: 4064727478692
MPN:
11139506
UNITRONIC FD CP (TP) plus A 8X2X0,14

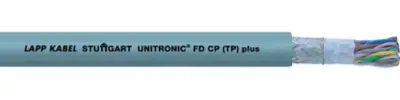

11139506 LAPP Data Cables Image 1
11139506 LAPP Data Cables Image 2
Image may differ
Unit Price (€ / mtr.)
9.4129 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Total Price:
941.29 € *
*incl. VAT plus shipping costs
**Subject to prior sale
100 mtr.
9.4129 €

Data cable, 11139506, LAPP

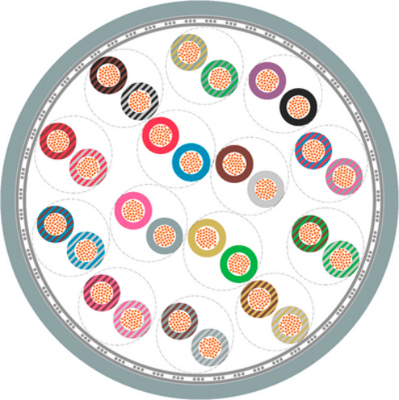

This cable is a shielded, highly flexible, low-capacitive PUR data cable with twisted pairs for sophisticated chain track.

Features

  • Halogen-free
  • Good chemical resistance
  • Cold-resistant
  • Mechanical resistance
  • Oil-resistant
  • Low-adhesive surface

Applications

  • Suitable for use in measuring, control and regulating circuits
  • Linear robots, automated handling equipment
  • Sophisticated design for high-performance chain/ track use
  • Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)

Technical specifications
Core insulation material polyolefine
Colour gray
Number of cores 16
Outer diameter 8.8 mm
Drag chain suitable Yes
AWG cross-section AWG 26
Halogen free Yes
Cable cross-section 0.14 mm²
Version data cable
Material PUR
Cable material copper, bright
Shielding shielded
Temperature range (unmoved) -40 °C to 80 °C
Temperature range (active) -40 °C to 80 °C
Logistics
Country of origin IT
Customs tariff number 85444993
Original Packaging Ring with 100 meters
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
