11139505 | LAPP

PUR data cable, 12-wire, 0.14 mm², AWG 26, gray, 11139505

Order No.: 33P225
EAN: 4064727478630
MPN:
11139505
UNITRONIC FD CP (TP) plus A 6X2X0,14
Series: UNITRONIC FD CP (TP) plus A
LAPP

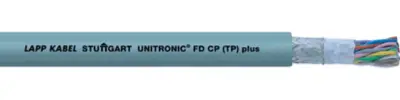

11139505 LAPP Data Cables Image 1

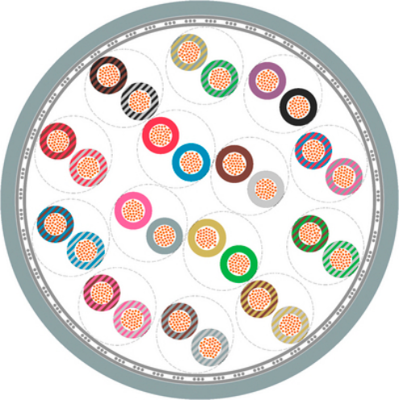

11139505 LAPP Data Cables Image 2
Image may differ
Print
Key Specification:
Version data cable
Number of cores 12
Cable cross-section 0.14 mm²
AWG cross-section AWG 26
Outer diameter 7.5 mm
Show variants: 44
Download Datasheet Technical specifications
Unit Price (€ / mtr.)
8.1515 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
815.15 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 mtr.
8.1515 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

Data cable, 11139505, LAPP

This cable is a shielded, highly flexible, low-capacitive PUR data cable with twisted pairs for sophisticated chain track.

Features

  • Halogen-free
  • Good chemical resistance
  • Cold-resistant
  • Mechanical resistance
  • Oil-resistant
  • Low-adhesive surface

Applications

  • Suitable for use in measuring, control and regulating circuits
  • Linear robots, automated handling equipment
  • Sophisticated design for high-performance chain/ track use
  • Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)

Technical specifications
Drag chain suitable Yes
AWG cross-section AWG 26
Colour gray
Number of cores 12
Outer diameter 7.5 mm
Temperature range (unmoved) -40 °C to 80 °C
Shielding shielded
Temperature range (active) -40 °C to 80 °C
Cable material copper, bright
Halogen free Yes
Core insulation material polyolefine
Cable cross-section 0.14 mm²
Material PUR
Version data cable
Articles of same specification 0
Logistics
Original Packaging Ring with 100 meters
Customs tariff number 85444993
Country of origin IT
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
