11139502 | LAPP

PUR data cable, 6-wire, 0.14 mm², AWG 26, gray, 11139502

Order No.: 33P222
EAN: 4064727478487
MPN:
11139502
UNITRONIC FD CP (TP) plus A 3X2X0,14

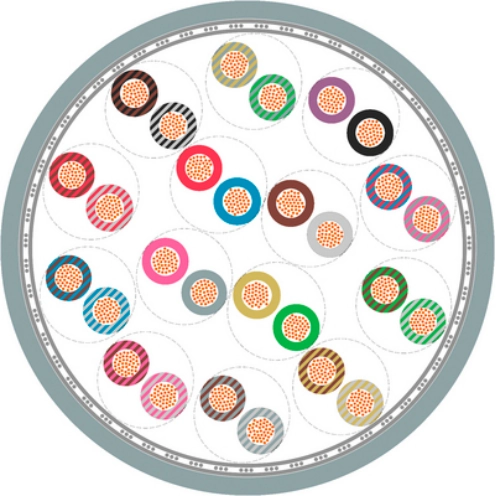

11139502 LAPP Data Cables Image 1

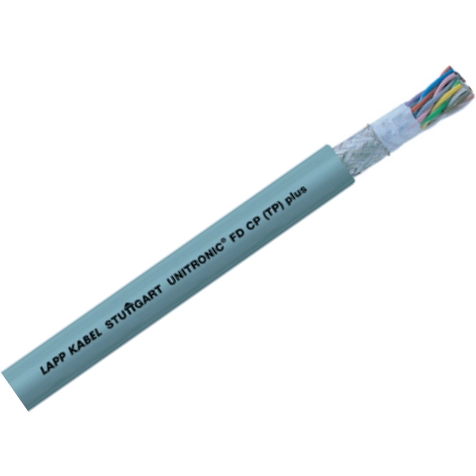

11139502 LAPP Data Cables Image 2
Image may differ
Unit Price (€ / mtr.)
5.5692 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
556.92 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 mtr.
5.5692 €

Data cable, 11139502, LAPP

This cable is a shielded, highly flexible, low-capacitive PUR data cable with twisted pairs for sophisticated chain track.

Features

  • Halogen-free
  • Good chemical resistance
  • Cold-resistant
  • Mechanical resistance
  • Oil-resistant
  • Low-adhesive surface

Applications

  • Suitable for use in measuring, control and regulating circuits
  • Linear robots, automated handling equipment
  • Sophisticated design for high-performance chain/ track use
  • Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)

Technical specifications
Filter Property Value
Material PUR
Cable material copper, bright
Version data cable
Number of cores 6
Shielding shielded
Core insulation material polyolefine
Cable cross-section 0.14 mm²
Temperature range (unmoved) -40 °C to 80 °C
Temperature range (active) -40 °C to 80 °C
Drag chain suitable Yes
Outer diameter 6.2 mm
Colour gray
Halogen free Yes
AWG cross-section AWG 26
Logistics
Property Value
Original Packaging Ring with 100 meters
Customs tariff number 85444993
Country of origin IT
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
