1032053 | LAPP

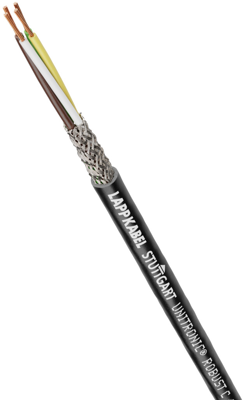

TPE data cable, 5-wire, 0.14 mm², black, 1032053
Order No.: 33P6182
EAN: 4044777238033
MPN:
1032053
UNITRONIC ROBUST C 5x0,14
Series: UNITRONIC ROBUST C
Unit Price (€ / mtr.)
2.7013 € *
Standard delivery time from the manufacturer is: 6 Weeks
Data cable, 1032053, LAPP
The 1032053is halogen free, robust, screened data cables for low frequency applications with outstanding weather, ozone and UV resistance. This product is designed for dry, humid and wet conditions. Considering the temperature range, an outdoor use is possible. At room temperature it is increased resistant to acids, caustic solutions and certain oils. It is not for use with continuous operational movements, tensile strain or restricted guidance. The screen provides protection against electromagnetic interferences.
Features
- Suitable for outdoor use
- Good chemical resistance
- Cold-resistant
- Well-suited to steam cleaning
- Low smoke density
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core insulation material | PP | |
| Number of cores | 5 | |
| Version | data cable | |
| Temperature range (active) | -40 °C to 90 °C | |
| Halogen free | Yes | |
| Cable cross-section | 0.14 mm² | |
| Material | TPE | |
| Temperature range (unmoved) | -50 °C to 90 °C | |
| Cable material | copper, bright | |
| Colour | black | |
| Outer diameter | 4.6 mm | |
| Drag chain suitable | No | |
| Shielding | shielded |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
