1030507 | LAPP
PVC data cable, 18-wire, 0.34 mm², AWG 22, black, 1030507
Order No.: 33P7156
EAN: 4064727119236
MPN:
1030507
UNITRONIC LiYCY 18x0,34 BK
Series: UNITRONIC LiYCY BK
Unit Price (€ / mtr.)
4.8195 € *
Standard delivery time from the manufacturer is: 6 Weeks

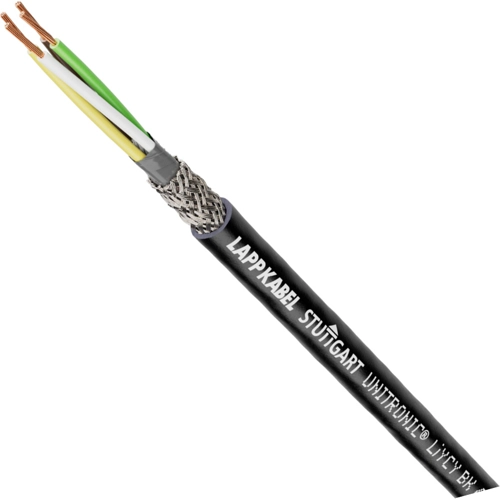

Data cable, 1030507, LAPP
The 1030507 is a screened data cable for low frequency applications. The cable is designed for fixed installation and for conditional flexible use. It can be used in dry and damp rooms and also outdoors. The screen provides protection against electromagnetic interferences. The cable is used for example in computer systems, instrumentation technology, office equipment and balances.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Outer diameter | 10.2 mm | |
| Version | data cable | |
| Core insulation material | PVC | |
| Halogen free | No | |
| Cable cross-section | 0.34 mm² | |
| Cable material | copper, bright | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Shielding | shielded | |
| Colour | black | |
| Material | PVC | |
| Number of cores | 18 | |
| AWG cross-section | AWG 22 | |
| Temperature range (active) | -5 °C to 70 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
| Country of origin | QU |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
