1030261 | LAPP
PVC data cable, 10-wire, 0.5 mm², AWG 20, black, 1030261
Order No.: 33P7245
EAN: 4064727114583
MPN:
1030261
UNITRONIC LiYY 10x0,5 BK
Series: UNITRONIC LiYY BK
Unit Price (€ / mtr.)
3.8913 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
3.89 € *
Price list
Quantity
Price per unit*
1 mtr.
3.8913 €
10 mtr.
3.2844 €
50 mtr.
2.8679 €
100 mtr.
2.6537 €
*incl. VAT plus shipping costs
Subject to prior sale

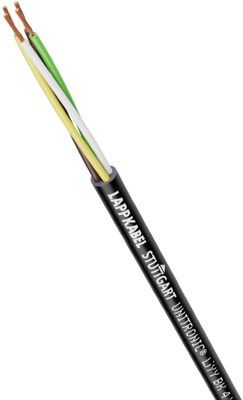

Data cable, 1030261, LAPP
The 1030261 is a data cable for low frequency applications. The cable is designed for fixed installation and for conditional flexible use. It can be used in dry and damp rooms and also outdoors. The cable is used for example in computer systems, instrumentation technology, office equipment and balances.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | PVC | |
| Cable material | copper, bright | |
| Version | data cable | |
| Number of cores | 10 | |
| Shielding | unshielded | |
| Core insulation material | PVC | |
| Cable cross-section | 0.5 mm² | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Temperature range (active) | -5 °C to 70 °C | |
| Outer diameter | 8.6 mm | |
| Colour | black | |
| Halogen free | No | |
| AWG cross-section | AWG 20 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444993 |
| Country of origin | MY |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
