1030209 | LAPP

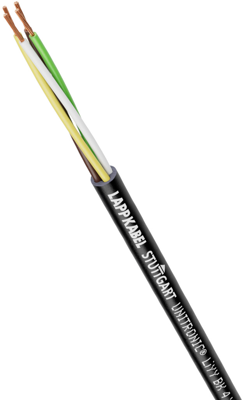

PVC data cable, 16-wire, 0.14 mm², AWG 26, black, 1030209
Order No.: 33P7255
EAN: 4064727112138
MPN:
1030209
UNITRONIC LiYY 16x0,14 BK
Series: UNITRONIC LiYY BK
Unit Price (€ / mtr.)
2.5704 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
2.57 € *
Price list
Quantity
Price per unit*
1 mtr.
2.5704 €
10 mtr.
2.1658 €
50 mtr.
1.9040 €
100 mtr.
1.7493 €
*incl. VAT plus shipping costs
Subject to prior sale
Data cable, 1030209, LAPP
The 1030209 is a data cable for low frequency applications. The cable is designed for fixed installation and for conditional flexible use. It can be used in dry and damp rooms and also outdoors. The cable is used for example in computer systems, instrumentation technology, office equipment and balances.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 26 | |
| Colour | black | |
| Core insulation material | PVC | |
| Temperature range (active) | -5 °C to 70 °C | |
| Halogen free | No | |
| Cable cross-section | 0.14 mm² | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Number of cores | 16 | |
| Outer diameter | 6.1 mm | |
| Material | PVC | |
| Version | data cable | |
| Cable material | copper, bright | |
| Shielding | unshielded |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444993 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
