1002181 | LAPP

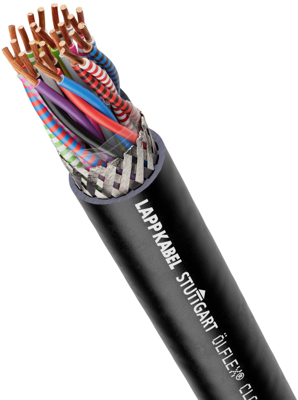

HFFR data cable, 8-wire, 0.75 mm², black, 1002181
Order No.: 33P5974
EAN: 4044777899906
MPN:
1002181
ÖLFLEX CLASSIC 115 CH SF (TP) 4x2x0,75
Series: ÖLFLEX CLASSIC 115 CH SF (TP)
Unit Price (€ / mtr.)
11.0789 € *
Standard delivery time from the manufacturer is: 6 Weeks
Data cable, 1002181, LAPP
The 1002181 is a halogen-free, oil resistant, highly flame retardant, screened, twisted pair data cable for low frequency applications. It is also suitable for use in dry, damp or wet areas and for outdoor use if the indicated temperature range is observed.
Features
- Good chemical resistance
- Cold-resistant
- Interference signals
- Temperature-resistant
- UV-resistant
Applications
- Public buildings like airports or railway stations
- Plant engineering
- Industrial machinery
- Heating and air-conditioning systems
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Halogen free | Yes | |
| Colour | black | |
| Cable cross-section | 0.75 mm² | |
| Outer diameter | 10.9 mm | |
| Version | data cable | |
| Material | HFFR | |
| Temperature range (active) | -30 °C to 70 °C | |
| Number of cores | 8 | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Shielding | shielded | |
| Core insulation material | HFFR | |
| Drag chain suitable | No | |
| Cable material | copper, bright |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
