1002180 | LAPP
HFFR data cable, 6-wire, 0.75 mm², black, 1002180
Order No.: 33P5973
EAN: 4044777899876
MPN:
1002180
ÖLFLEX CLASSIC 115 CH SF (TP) 3x2x0,75
Series: ÖLFLEX CLASSIC 115 CH SF (TP)
Not suitable for new designs - Last time buy manufacturer: 03.01.2026
Unit Price (€ / mtr.)
12.2570 € *
Standard delivery time from the manufacturer is: 6 Weeks

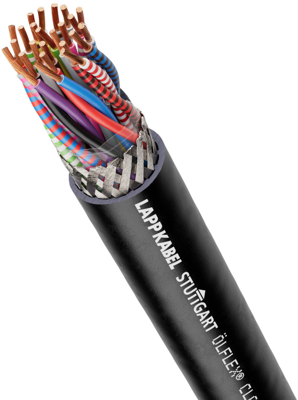

Data cable, 1002180, LAPP
The 1002180 is a halogen-free, oil resistant, highly flame retardant, screened, twisted pair data cable for low frequency applications. It is also suitable for use in dry, damp or wet areas and for outdoor use if the indicated temperature range is observed.
Features
- Good chemical resistance
- Cold-resistant
- Interference signals
- Temperature-resistant
- UV-resistant
Applications
- Public buildings like airports or railway stations
- Plant engineering
- Industrial machinery
- Heating and air-conditioning systems
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Drag chain suitable | No | |
| Material | HFFR | |
| Cable material | copper, bright | |
| Temperature range (active) | -30 °C to 70 °C | |
| Number of cores | 6 | |
| Core insulation material | HFFR | |
| Shielding | shielded | |
| Halogen free | Yes | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Colour | black | |
| Outer diameter | 9.6 mm | |
| Version | data cable | |
| Cable cross-section | 0.75 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
