0035164 | LAPP
PVC data cable, 16-wire, 0.25 mm², gray, 0035164
Order No.: 33P2945
EAN: 4044774716770
MPN:
0035164
UNITRONIC LiYY (TP) 8x2x0,25
Series: UNITRONIC LiYY (TP)
Unit Price (€ / mtr.)
2.7132 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
271.32 € *
Price list
Quantity
Price per unit*
100 mtr.
2.7132 €
500 mtr.
2.5347 €
*incl. VAT plus shipping costs
Subject to prior sale

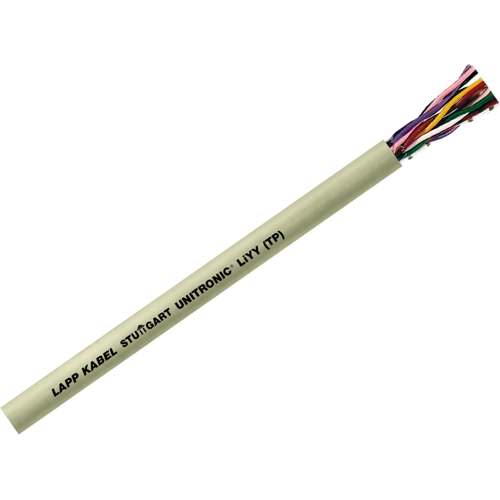

Data transmission cable, 0035164, LAPP
The 0035164 is a twisted pair data cable for low frequency applications. The cable is designed for fixed installation and for conditional flexible use. It is used in dry and damp interiors but not appropriate for outside usage. The twisted pairs with short lay lengths provides good decoupling of the conductor circuits. The cable is used for example in computer systems, instrumentation technology, office equipment and balances.
Features
- Twisted in pairs to reduce decoupling
- Flame-retardant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Drag chain suitable | No | |
| Colour | gray | |
| Number of cores | 16 | |
| Outer diameter | 9.3 mm | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Shielding | unshielded | |
| Temperature range (active) | -5 °C to 70 °C | |
| Cable material | copper, bright | |
| Halogen free | No | |
| Core insulation material | PVC | |
| Cable cross-section | 0.25 mm² | |
| Material | PVC | |
| Version | data cable |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444993 |
| Country of origin | MY |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
