0035162 | LAPP

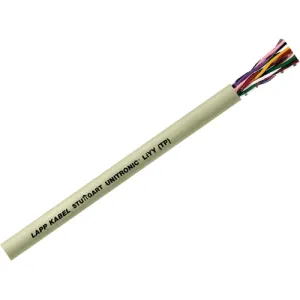

PVC data cable, 8-wire, 0.25 mm², gray, 0035162
Order No.: 33P2940
EAN: 4044774716718
MPN:
0035162
UNITRONIC LiYY (TP) 4x2x0,25
Series: UNITRONIC LiYY (TP)
Unit Price (€ / mtr.)
1.7969 € *
Available: 70 mtr.
Total Price:
1.80 € *
Price list
Quantity
Price per unit*
1 mtr.
1.7969 €
10 mtr.
1.6065 €
50 mtr.
1.4875 €
100 mtr.
1.3685 €
500 mtr.
1.2971 €
*incl. VAT plus shipping costs
Subject to prior sale
Data transmission cable, 0035162, LAPP
The 0035162 is a twisted pair data cable for low frequency applications. The cable is designed for fixed installation and for conditional flexible use. It is used in dry and damp interiors but not appropriate for outside usage. The twisted pairs with short lay lengths provides good decoupling of the conductor circuits. The cable is used for example in computer systems, instrumentation technology, office equipment and balances.
Features
- Twisted in pairs to reduce decoupling
- Flame-retardant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | gray | |
| Core insulation material | PVC | |
| Temperature range (active) | -5 °C to 70 °C | |
| Drag chain suitable | No | |
| Halogen free | No | |
| Cable cross-section | 0.25 mm² | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Number of cores | 8 | |
| Outer diameter | 7 mm | |
| Material | PVC | |
| Version | data cable | |
| Cable material | copper, bright | |
| Shielding | unshielded |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444993 |
| Country of origin | MY |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
