0035104 | LAPP

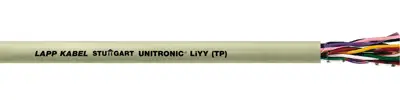

PVC data cable, 10-wire, 0.14 mm², gray, 0035104
Order No.: 33P2942
EAN: 4044774716145
MPN:
0035104
UNITRONIC LiYY (TP) 5x2x0,14
Series: UNITRONIC LiYY (TP)
Unit Price (€ / mtr.)
1.9159 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
1.92 € *
Price list
Quantity
Price per unit*
1 mtr.
1.9159 €
10 mtr.
1.7136 €
50 mtr.
1.5827 €
100 mtr.
1.4399 €
500 mtr.
1.3566 €
*incl. VAT plus shipping costs
Subject to prior sale
Data transmission cable, 0035104, LAPP
The 0035104 is a twisted pair data cable for low frequency applications. The cable is designed for fixed installation and for conditional flexible use. It is used in dry and damp interiors but not appropriate for outside usage. The twisted pairs with short lay lengths provides good decoupling of the conductor circuits. The cable is used for example in computer systems, instrumentation technology, office equipment and balances.
Features
- Twisted in pairs to reduce decoupling
- Flame-retardant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | PVC | |
| Cable material | copper, bright | |
| Version | data cable | |
| Number of cores | 10 | |
| Shielding | unshielded | |
| Core insulation material | PVC | |
| Cable cross-section | 0.14 mm² | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Temperature range (active) | -5 °C to 70 °C | |
| Drag chain suitable | No | |
| Outer diameter | 5.8 mm | |
| Colour | gray | |
| Halogen free | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444993 |
| Country of origin | MY |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
