0035103 | LAPP
PVC data cable, 8-wire, 0.14 mm², gray, 0035103
Order No.: 33P2939
EAN: 4044774716114
MPN:
0035103
UNITRONIC LiYY (TP) 4x2x0,14
Series: UNITRONIC LiYY (TP)
Unit Price (€ / mtr.)
1.4518 € *
Available: 50 mtr.
Total Price:
1.45 € *
Price list
Quantity
Price per unit*
1 mtr.
1.4518 €
10 mtr.
1.3209 €
50 mtr.
1.2138 €
100 mtr.
1.1186 €
500 mtr.
1.0591 €
*incl. VAT plus shipping costs
Subject to prior sale

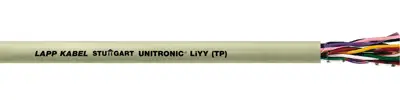

Data transmission cable, 0035103, LAPP
The 0035103 is a twisted pair data cable for low frequency applications. The cable is designed for fixed installation and for conditional flexible use. It is used in dry and damp interiors but not appropriate for outside usage. The twisted pairs with short lay lengths provides good decoupling of the conductor circuits. The cable is used for example in computer systems, instrumentation technology, office equipment and balances.
Features
- Twisted in pairs to reduce decoupling
- Flame-retardant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core insulation material | PVC | |
| Colour | gray | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Temperature range (active) | -5 °C to 70 °C | |
| Version | data cable | |
| Shielding | unshielded | |
| Number of cores | 8 | |
| Cable material | copper, bright | |
| Outer diameter | 5.6 mm | |
| Cable cross-section | 0.14 mm² | |
| Halogen free | No | |
| Material | PVC | |
| Drag chain suitable | No |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Customs tariff number | 85444993 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
