0034224 | LAPP

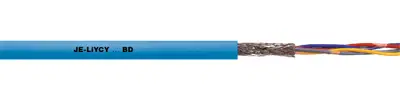

PVC data cable, 32-wire, 0.5 mm², blue, 0034224
Order No.: 33P5781
EAN: 4044775181638
MPN:
0034224
JE-LiYCY...BD EB 16X2X0,5
Series: JE-LiYCY...BD EB
Unit Price (€ / mtr.)
11.7453 € *
Standard delivery time from the manufacturer is: On Request
Data cable, 0034224, LAPP
The 0034224 is a connecting cable for industrial electronics. It can be used in measurement and control engineering and also as pulse and data transmission cable. With the blue outer sheath the cable is designed for the installation of intrinsically safe circuits in hazardous (explosive) areas. The cable is suited for limited flexing use and fixed installation in dry and wet rooms on and under plaster.
Features
- Flame-retardant
- Interference signals
- Overall braid minimises electrical interference
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Outer diameter | 13.9 mm | |
| Version | data cable | |
| Core insulation material | PVC | |
| Halogen free | No | |
| Cable cross-section | 0.5 mm² | |
| Cable material | copper, bright | |
| Temperature range (unmoved) | -30 °C to 70 °C | |
| Shielding | shielded | |
| Drag chain suitable | No | |
| Colour | blue | |
| Material | PVC | |
| Number of cores | 32 | |
| Temperature range (active) | -5 °C to 50 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444993 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
