0034221 | LAPP

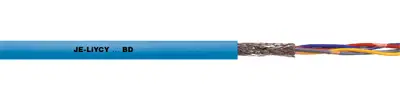

PVC data cable, 8-wire, 0.5 mm², blue, 0034221
Order No.: 33P5787
EAN: 4044774743103
MPN:
0034221
JE-LiYCY...BD EB 4X2X0,5
Series: JE-LiYCY...BD EB
Unit Price (€ / mtr.)
5.2003 € *
Standard delivery time from the manufacturer is: On Request
Data cable, 0034221, LAPP
The 0034221 is a connecting cable for industrial electronics. It can be used in measurement and control engineering and also as pulse and data transmission cable. With the blue outer sheath the cable is designed for the installation of intrinsically safe circuits in hazardous (explosive) areas. The cable is suited for limited flexing use and fixed installation in dry and wet rooms on and under plaster.
Features
- Flame-retardant
- Interference signals
- Overall braid minimises electrical interference
Technical specifications
| Core insulation material | PVC | |
| Colour | blue | |
| Number of cores | 8 | |
| Outer diameter | 8.5 mm | |
| Drag chain suitable | No | |
| Halogen free | No | |
| Cable cross-section | 0.5 mm² | |
| Version | data cable | |
| Material | PVC | |
| Cable material | copper, bright | |
| Shielding | shielded | |
| Temperature range (unmoved) | -30 °C to 70 °C | |
| Temperature range (active) | -5 °C to 50 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444993 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
