0034220 | LAPP
PVC data cable, 4-wire, 0.5 mm², blue, 0034220
Order No.: 33P5784
EAN: 4044774743073
MPN:
0034220
JE-LiYCY...BD EB 2X2X0,5
Series: JE-LiYCY...BD EB
Unit Price (€ / mtr.)
2.7489 € *
Standard delivery time from the manufacturer is: 6 Weeks

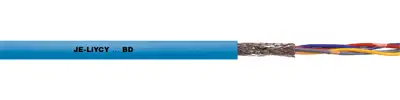

Data cable, 0034220, LAPP
The 0034220 is a connecting cable for industrial electronics. It can be used in measurement and control engineering and also as pulse and data transmission cable. With the blue outer sheath the cable is designed for the installation of intrinsically safe circuits in hazardous (explosive) areas. The cable is suited for limited flexing use and fixed installation in dry and wet rooms on and under plaster.
Features
- Flame-retardant
- Interference signals
- Overall braid minimises electrical interference
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Outer diameter | 6.6 mm | |
| Version | data cable | |
| Core insulation material | PVC | |
| Halogen free | No | |
| Cable cross-section | 0.5 mm² | |
| Cable material | copper, bright | |
| Temperature range (unmoved) | -30 °C to 70 °C | |
| Shielding | shielded | |
| Drag chain suitable | No | |
| Colour | blue | |
| Material | PVC | |
| Number of cores | 4 | |
| Temperature range (active) | -5 °C to 50 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444993 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
