0034203 | LAPP
PVC data cable, 32-wire, 0.5 mm², gray, 0034203
Unit Price (€ / mtr.)
10.1269 € *
Standard delivery time from the manufacturer is: On Request

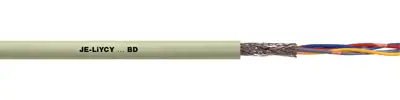

Data cable, 0034203, LAPP
The 0034203 is a connecting cable for industrial electronics. It can be used in measurement and control engineering and also as pulse and data transmission cable. The cable is suited for occasional flexing use and fixed installation in dry and wet rooms on and under plaster.
Features
- Flame-retardant
- Interference signals
- Overall braid minimises electrical interference
Technical specifications
| Core insulation material | PVC | |
| Colour | gray | |
| Number of cores | 32 | |
| Outer diameter | 13.9 mm | |
| Drag chain suitable | No | |
| Halogen free | No | |
| Cable cross-section | 0.5 mm² | |
| Version | data cable | |
| Material | PVC | |
| Cable material | copper, bright | |
| Shielding | shielded | |
| Temperature range (unmoved) | -30 °C to 70 °C | |
| Temperature range (active) | -5 °C to 50 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444993 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
