0034073 | LAPP
PVC data cable, 20-wire, 1.0 mm², gray, 0034073
Order No.: 33P2912
EAN: 4064727473307
MPN:
0034073
UNITRONIC Li2YCY PiMF 10x2x1
Series: UNITRONIC Li2YCY PiMF
Unit Price (€ / mtr.)
24.7758 € *
Standard delivery time from the manufacturer is: On Request

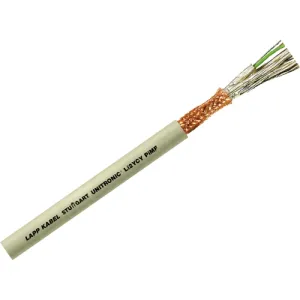

Screened data transmission cable, 0034073, LAPP
The 0034073 is particularly suitable for wiring data system and control in large industrial plants, for the transmission of sensitive signals and high bit rates for enhanced requirements in near-end crosstalk attenuation and high electrical interference in the circuits. This product can be used for measurement value transmission and serial 2-wire interfaces.
Features
- Interference signals
- Flame-retardant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Outer diameter | 19.7 mm | |
| Version | data cable | |
| Core insulation material | PE | |
| Halogen free | No | |
| Cable cross-section | 1.0 mm² | |
| Cable material | copper, bright | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Shielding | shielded | |
| Drag chain suitable | No | |
| Colour | gray | |
| Material | PVC | |
| Number of cores | 20 | |
| Temperature range (active) | -5 °C to 70 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444993 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
