0034070 | LAPP

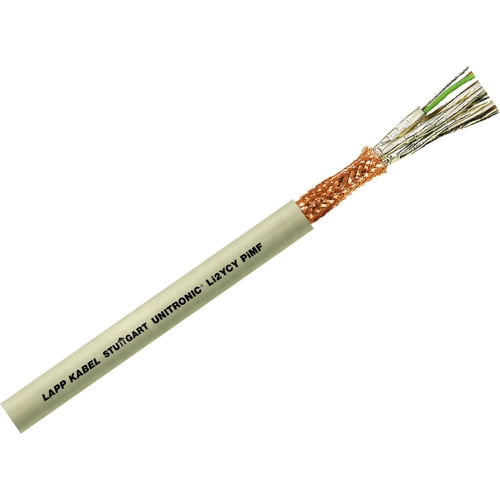

PVC data cable, 4-wire, 1.0 mm², gray, 0034070
Order No.: 33P2916
EAN: 4044774741956
MPN:
0034070
UNITRONIC Li2YCY PiMF 2x2x1
Series: UNITRONIC Li2YCY PiMF
Unit Price (€ / mtr.)
4.9742 € *
Standard delivery time from the manufacturer is: 6 Weeks
Screened data transmission cable, 0034070, LAPP
The 0034070 is particularly suitable for wiring data system and control in large industrial plants, for the transmission of sensitive signals and high bit rates for enhanced requirements in near-end crosstalk attenuation and high electrical interference in the circuits. This product can be used for measurement value transmission and serial 2-wire interfaces.
Features
- Interference signals
- Flame-retardant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | gray | |
| Outer diameter | 9.9 mm | |
| Drag chain suitable | No | |
| Number of cores | 4 | |
| Core insulation material | PE | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Halogen free | No | |
| Material | PVC | |
| Cable material | copper, bright | |
| Version | data cable | |
| Shielding | shielded | |
| Cable cross-section | 1.0 mm² | |
| Temperature range (active) | -5 °C to 70 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85444993 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
