0033203/100 | LAPP

PUR data cable, 3-wire, 0.14 mm², black, 0033203/100

Order No.: 95F2471
EAN: 4044774741031
MPN:
0033203/100
UNITRONIC LIYD11Y 03X0,14
0033203/100 LAPP Data Cables
Image may differ
Unit Price (€ / mtr.)
3.4748 € *
Available: 138 mtr.
Total Price:
3.47 € *
Price list
Quantity
Price per unit*
1 mtr.
3.4748 €
10 mtr.
3.0464 €
50 mtr.
2.7608 €
100 mtr.
2.5585 €
500 mtr.
2.3562 €
*incl. VAT plus shipping costs
Subject to prior sale

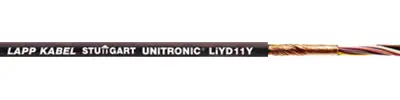

PUR control cables, shielded, type Lapp Kabel UNITRONIC LiYD11Y.

Particularly abrasion-resistant outer insulation, flame retardant to IEC 60332, designed for use in industrial environments; Conductors: stranded copper wire, bright, super-fine wire. PVC conductor insulation. Color coded to DIN 47100, without color repetition, wires twisted in layers. Shielding: copper wire braid. Outer insulation made of PUR. Color: black. Test voltage: 1200 V. Insulation: specific resistance min. 20 Gohm/cm. Operating capacitance wire to wire/wire to shielding: approx. 140/150 nF/km. Temperature range in static/moving state: –30 to +80 °C/–5.0 to +70 °C.

Cross-section 0.14 mm².

Peak operating voltage: 350 V.

Technical attributes (number of poles, outer diameter OD): 3-pole, OD 4.3 mm

Technical specifications
Number of cores 3
Cable cross-section 0.14 mm²
Halogen free Yes
Core insulation material PVC
Colour black
Temperature range (unmoved) -30 °C to 80 °C
Cable material copper, bright
Material PUR
Temperature range (active) -5 °C to 70 °C
Shielding shielded
Outer diameter 4.3 mm
Version data cable
Logistics
Customs tariff number 85444993
Original Packaging Ring with 100 meters
Country of origin DE
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
