0032854 | LAPP
PUR data cable, 12-wire, 0.25 mm², gray, 0032854
Order No.: 33P2953
EAN: 4044774711409
MPN:
0032854
UNITRONIC PUR CP (TP) 6x2x0,25
Series: UNITRONIC PUR CP (TP)
Unit Price (€ / mtr.)
6.8425 € *
Standard delivery time from the manufacturer is: 6 Weeks

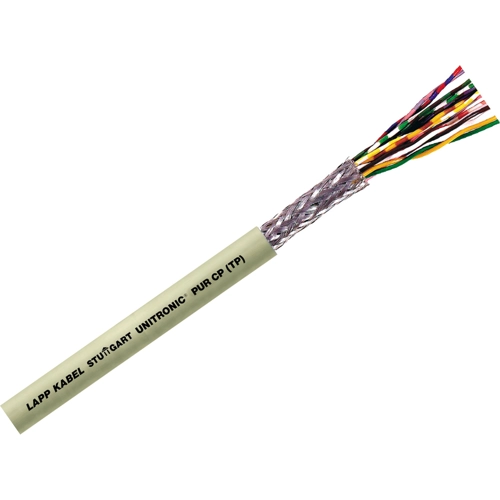

Screened data transmission cable, 0032854, LAPP
The 0032854 is a screened data transmission cable with PUR outer sheath and twisted pairs for harsh conditions. The cable is designed for fixed installation and for conditional flexible use. It is used in dry, damp and wet interiors and appropriate for outside usage. The twisted pairs with short lay lengths provides good decoupling of the conductor circuits. The screen provides protection against electromagnetic interferences. This data and signal cable is used in computer systems, electronic control and office equipment.
Features
- Low-adhesive surface
- Special notch and tear-resistance
- Good UV-resistance
- Flame-retardant
- Mechanical resistance
- Oil-resistant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | gray | |
| Outer diameter | 8.5 mm | |
| Drag chain suitable | No | |
| Number of cores | 12 | |
| Core insulation material | PVC | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Halogen free | No | |
| Material | PUR | |
| Cable material | copper, bright | |
| Version | data cable | |
| Shielding | shielded | |
| Cable cross-section | 0.25 mm² | |
| Temperature range (active) | -5 °C to 70 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85444993 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
