0032465 | LAPP
PVC computer cable, 8-wire, 1.3 mm², black, 0032465
Order No.: 33P6160
EAN: 4044774740454
MPN:
0032465

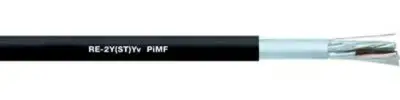

UNITRONIC RE-2Y(ST)YV PIMF 4X2X1,3 BK
Series: UNITRONIC RE-2Y(ST)Yv PiMF
Unit Price (€ / mtr.)
8.2467 € *
Standard delivery time from the manufacturer is: 6 Weeks
Computer cable, 0032465, LAPP
The 0032465 is mainly used in measurement and control engineering. It is intended for use when modern process computers have to process large volumes of data, e.g. high-capacity computer systems in waste incineration plants or sewage treatment plants. This product is suitable for fixed installation in dry or damp rooms and, in case of the black jacketed versions, also for outdoor use.
Features
- Interference signals
- Flame-retardant
- Decoupling of circuits by means of twisted-pair (TP) design (crosstalk effects)
- Low capacitance due to polyolefin-based insulation
- Computer cable with screened pairs and reinforced outer sheath
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Outer diameter | 14.2 mm | |
| Version | computer cable | |
| Core insulation material | PE | |
| Halogen free | No | |
| Cable cross-section | 1.3 mm² | |
| Cable material | copper, bright | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Shielding | shielded | |
| Drag chain suitable | No | |
| Colour | black | |
| Material | PVC | |
| Number of cores | 8 | |
| Temperature range (active) | -5 °C to 50 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444993 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
