0032453 | LAPP

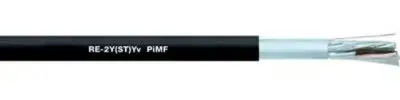

PVC computer cable, 32-wire, 0.5 mm², black, 0032453
Order No.: 33P6154
EAN: 4064728757130
MPN:
0032453
UNITRONIC RE-2Y(ST)YV PIMF 16X2X0,5 BK
Series: UNITRONIC RE-2Y(ST)Yv PiMF
Unit Price (€ / mtr.)
18.683 € *
Standard delivery time from the manufacturer is: On Request
Computer cable, 0032453, LAPP
The 0032453 is mainly used in measurement and control engineering. It is intended for use when modern process computers have to process large volumes of data, e.g. high-capacity computer systems in waste incineration plants or sewage treatment plants. This product is suitable for fixed installation in dry or damp rooms and, in case of the black jacketed versions, also for outdoor use.
Features
- Interference signals
- Flame-retardant
- Decoupling of circuits by means of twisted-pair (TP) design (crosstalk effects)
- Low capacitance due to polyolefin-based insulation
- Computer cable with screened pairs and reinforced outer sheath
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Outer diameter | 19.1 mm | |
| Version | computer cable | |
| Core insulation material | PE | |
| Halogen free | No | |
| Cable cross-section | 0.5 mm² | |
| Cable material | copper, bright | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Shielding | shielded | |
| Drag chain suitable | No | |
| Colour | black | |
| Material | PVC | |
| Number of cores | 32 | |
| Temperature range (active) | -5 °C to 50 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444993 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
