0032438 | LAPP

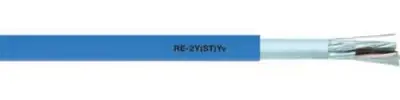

PVC computer cable, 4-wire, 0.5 mm², blue, 0032438
Order No.: 33P6156
EAN: 4044774739946
MPN:
0032438
UNITRONIC RE-2Y(ST)YV PIMF 2X2X0,5 BU
Series: UNITRONIC RE-2Y(ST)Yv PiMF
Unit Price (€ / mtr.)
2.3919 € *
Standard delivery time from the manufacturer is: 6 Weeks
Computer cable, 0032438, LAPP
The 0032438 is mainly used in measurement and control engineering. It is intended for use when modern process computers have to process large volumes of data, e.g. high-capacity computer systems in waste incineration plants or sewage treatment plants. This product is suitable for fixed installation in dry or damp rooms and, in case of the black jacketed versions, also for outdoor use.
Features
- Interference signals
- Flame-retardant
- Decoupling of circuits by means of twisted-pair (TP) design (crosstalk effects)
- Low capacitance due to polyolefin-based insulation
- Computer cable with screened pairs and reinforced outer sheath
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable material | copper, bright | |
| Core insulation material | PE | |
| Material | PVC | |
| Version | computer cable | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Temperature range (active) | -5 °C to 50 °C | |
| Halogen free | No | |
| Outer diameter | 10.5 mm | |
| Drag chain suitable | No | |
| Colour | blue | |
| Number of cores | 4 | |
| Shielding | shielded | |
| Cable cross-section | 0.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85444993 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
